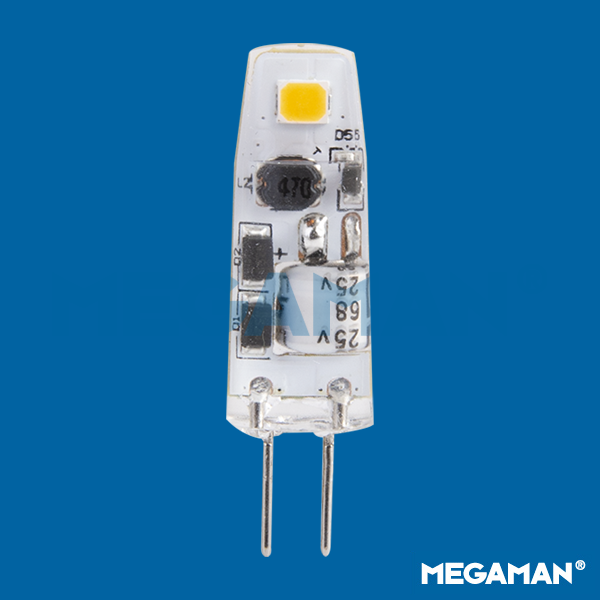

11W/1W G4 100lm 2700K Ra80 Non-Dim
G4
IES File
Specification Sheet
EU203010-CSv00+G4+827+AD012
| Electrical Data | |
| Voltage (V) | AC 12V |
| Frequency (Hz) | 50 Hz |
| Constant Current (mA) | 150 |
| Power Factor (λ) | ≥ 0.50 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Product Data | |
| Lamp Base | G4 |
| Product Wattage (W) | 1 |
| Equivalent Wattage (W) | 11 |
| Colour Temperature (K) | 2700 |
| Colour Render Index (Ra) | Ra80 |
| Materials | Silicon |
| Colour Consistency (SDCM) | 6 |
| Dimmable | No |
| Operating Temperature | -30°C to +40°C |
| Switching Cycles (times) | > 100000 |
| Weight (g) | 1.9 |
| Application | Indoor Decorative, Display Cabinets, Showcase Displays, Showrooms, Signages |
| Performance Data | |
| Total Luminous Flux (lm) | 100 |
| Luminous Flux (lm) | 100 |
| Luminous Efficacy (lm/W) | 100 |
| Rated Life (hrs) | 15000 |
| Product Dimensions | |
| Diameter (mm) | 10 |
| Width (mm) | 10 |
| Height (mm) | 34 |
